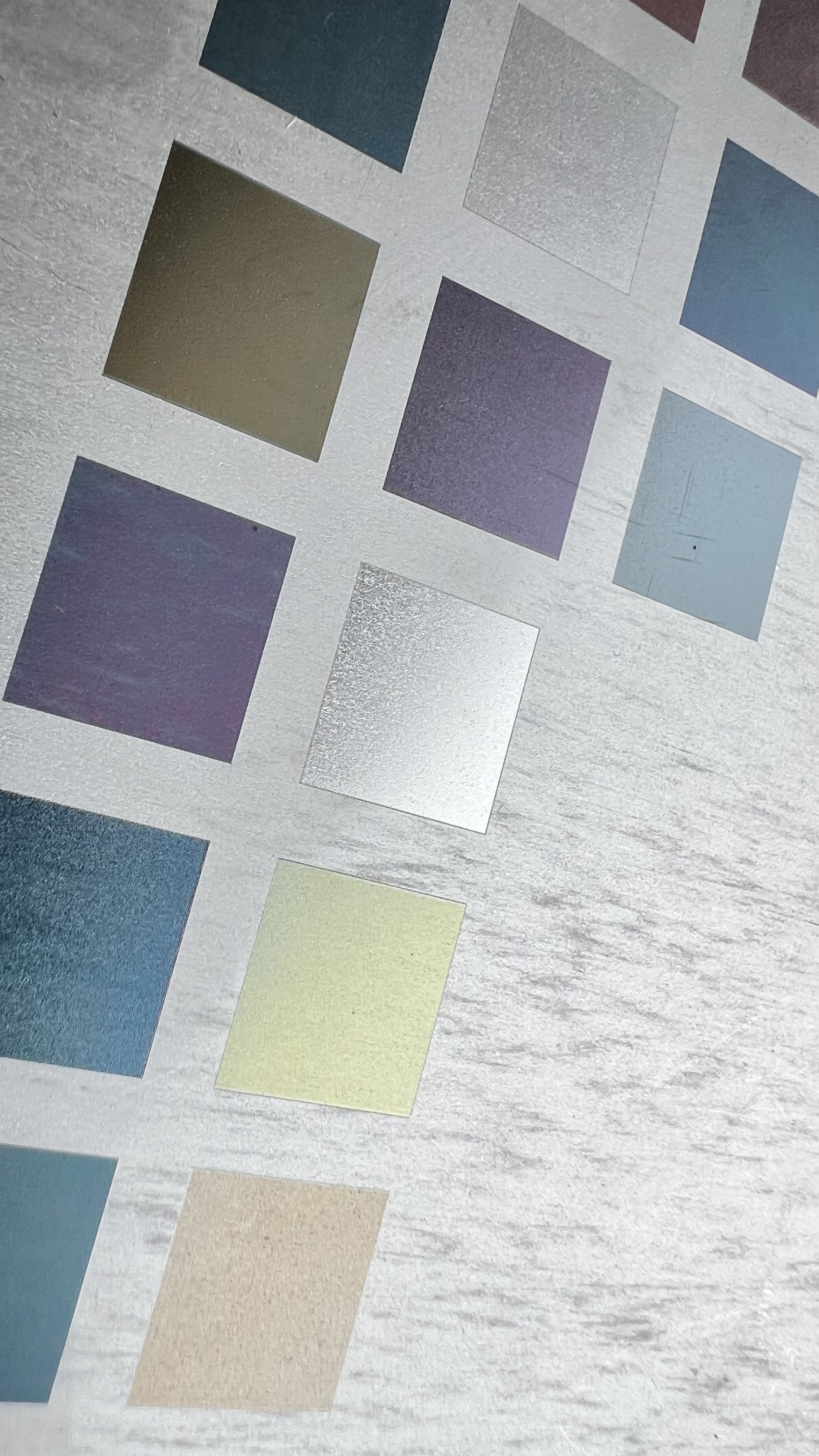

Example image · Silver on Stainless 316 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #30 · Image 1 of 2 Sample image · 2 available
#30 · 2026-02-26 · Nikolaus

Silver

on Stainless 316
ComMarker B6 60W Mopa · 150mm · 60 W
Power 21 %
Speed 2000 mm/s
Q-Pulse 200
Frequency 100 kHz
.lbrn2 Download LightBurn file Back to search
More Silver 4 entries More Stainless 316 34 entries More values for ComMarker 40 entries

All parameters

Power 21 %
Out of focus 0 mm
Laser power 60 W
Speed 2000 mm/sec
Frequency 100 kHz
Q-Pulse 200
Line interval 0.03 mm
Scan angle 30°
Bidirectional Yes
Crosshatch Yes
White pre-engrave No

Images 2 images

Rating

—
Be the first to rate.
5,0

Similar entries 6

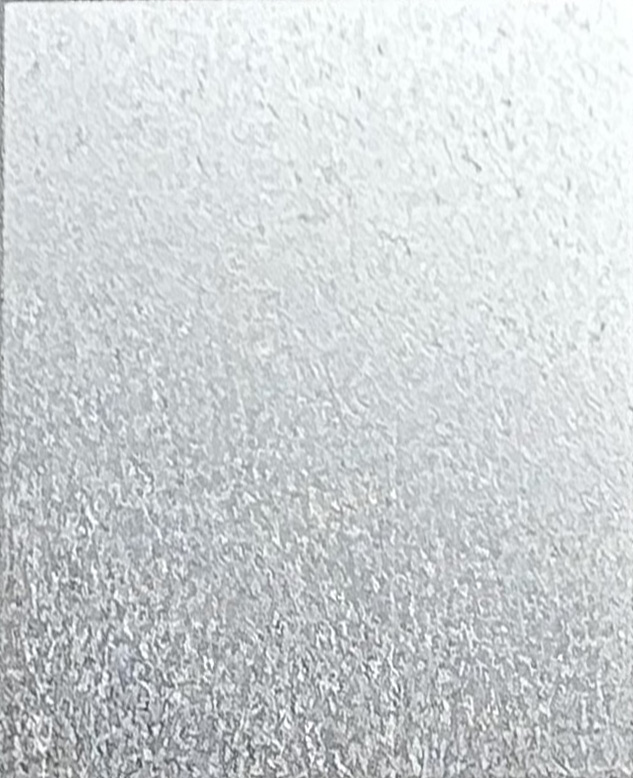

Example image · Silver on Stainless 316 · Laser: JPT YDFLP-E2-60-M7-M-R · Lens: 150mm · Entry #64 · Image 1 of 1 Silver Stainless 316 · JPT YDFLP-E2-60-M7-M-R Example image · Blue on Stainless 304 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #85 · Image 1 of 1 Blue Stainless 304 · ComMarker B6 60W Mopa Example image · Gold on Stainless 304 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #84 · Image 1 of 1 Gold Stainless 304 · ComMarker B6 60W Mopa Example image · Light blue on Stainless 304 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #83 · Image 1 of 1 Light blue Stainless 304 · ComMarker B6 60W Mopa Example image · Purple on Stainless 304 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #82 · Image 1 of 1 Purple Stainless 304 · ComMarker B6 60W Mopa Example image · Purple on Stainless 304 · Laser: ComMarker B6 60W Mopa · Lens: 150mm · Entry #81 · Image 1 of 1 Purple Stainless 304 · ComMarker B6 60W Mopa
